Collection: Hotstart Battery Heating Pads

Keeping your battery heated helps to retain cranking power during cold weather. Hotstart Battery Heating Pads are placed under batteries and radiate heat within the battery box. When using Hotstart Battery Heating Pads in an insulated battery box, a thermostat is recommended to monitor temperatures to prevent overheating the battery.

Battery heater pads are not recommended for nickel cadmium batteries.

Not intended for hazardous locations!

Modifications:

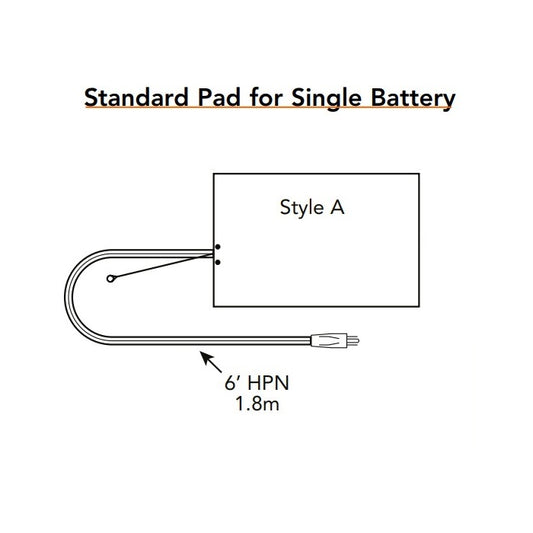

Style A has a 6 feet (1.8 m) HPN cord and a ground wire. Style A is a standard pad for a single battery.

Styles B and C are special pads for multiple batteries.

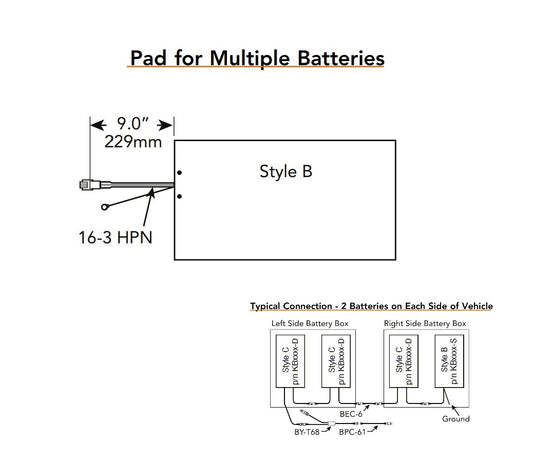

Style B has a 9 inch (229 mm) 16-3 HPN cord and a ground wire.

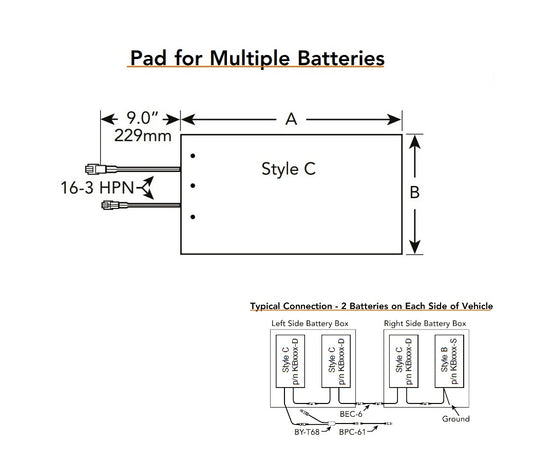

Style C has two 9 inch (229 mm) 16-3 HPN cords.

Power supply cords of different length, extension cords, and thermostat and y-cord assembly are available for multiple battery heating.

Heating Information

Primary Heating

  • Lead Acid Battery

Primary Heat Power

  • 50 W
  • 75 W

Power Specifications

Power Sources

  • AC, Single-Phase, 60 Hz
  • AC, Single-Phase, 50 Hz

Voltages

  • 120
  • 240

Power Connectors

  • NEMA Plug
  • Deutsch Plug

Mount Types

  • Pad

Sectors

  • Equipment
  • Engine

Markets

  • Power Generation
  • Marine
  • Machinery
  • Truck & Bus

Product Categories

  • Battery Heaters
