Collection: CTM Engine Heaters

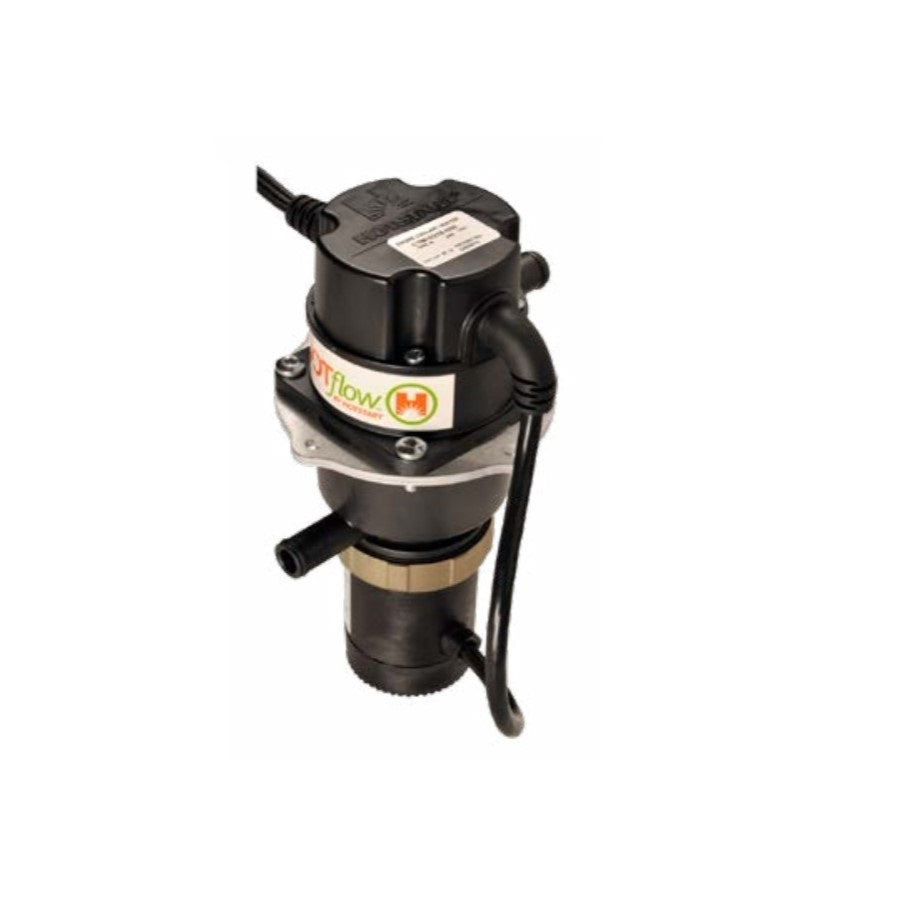

Despite its small footprint, efficient forced circulation allows the HOTflow® CTM system to heat engines up to 20 liters in displacement, allowing for a wide variety of weather-protected small engine applications. Multiple options are available, including UL/C-US listed and CE-compliant models.
The CTM’s inlet and outlet may be reoriented at 90° increments to accommodate heater plumbing. The included mounting kit is ideal for most installations; an optional vibration isolation kit is also available. Forced circulation provides uniform heat throughout the engine, reducing component maintenance and offering significant energy savings - resulting in end-user utility cost reductions up to 35% (savings are dependent on local utility rates and installation variables).
Not intended for hazardous locations!
Heating Information
Primary Heating
- Water
- Coolant Mix
Primary Heat Power
- 1 kW
- 1.5 kW
- 2.5 kW
Power Specifications
Power Sources
- AC, Single-Phase, 60 Hz
- AC, Single-Phase, 50 Hz
Voltages
- 120
- 240
Power Connectors
- NEMA Plug
- Euro Plug (Schuko)
- Hardwired
Temperature Control
Primary Temperature Control
- 100–120 °F (38–49 °C)
Primary High Limit Temperature
- 300°F (149°C)
Mount Types
- Bracket
Inlets / Outlets
Inlets
- 0.625” hose barb (15.9 mm)
Outlets
- 0.625” hose barb (15.9 mm)
Ingress Options
System Ingress
- IP44
