Collection: Hotstart EE Engine Heaters

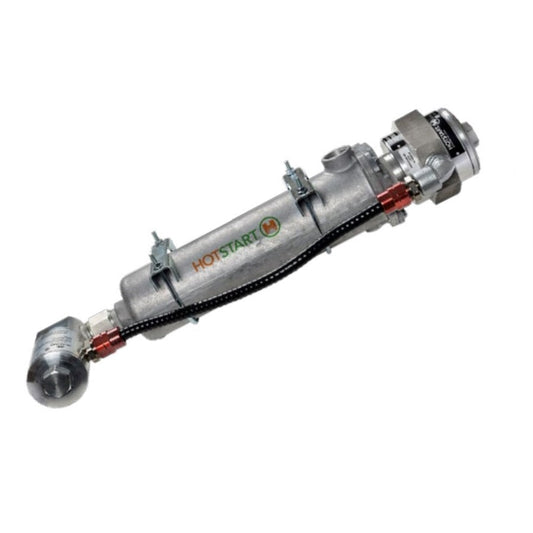

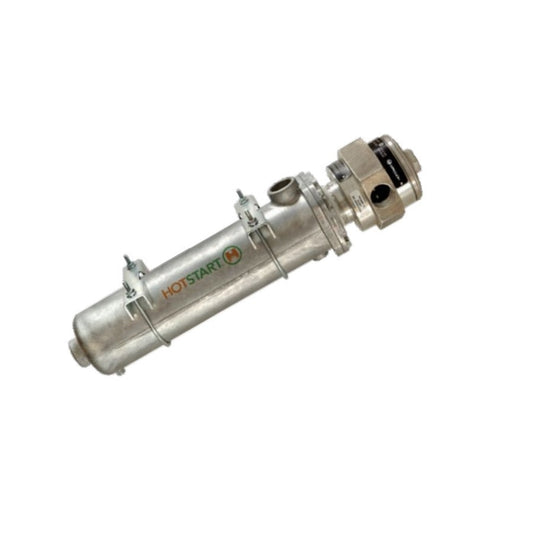

HOTSTART’s EE heaters are hazardous location (Class I, Group D) approved systems available in both single and three phase configurations that are hard wired into the main electrical system. The EE series features pressure die-cast aluminum tank, all-metal mounting bracket, heat power up to 5 kW, built-in high limit thermostat, and optional flow-through fixed setting 100-120 F thermostat.
Mounted externally from the engine block and utilizing convection – the natural rising of heated fluid – thermosiphon heaters require no additional pump and can be installed on a wide range of engines without requiring a specific part to conform to the water jacket. This adaptable and effective heating system makes thermosiphon heaters the ideal option for a wide variety of engine heating applications.
Applications
- Power Generation
- Hazardous location
- Machinery
Heating Information
Primary Heating
Primary Heat Power
- 1.5 kW
- 2 kW
- 2.5 kW
- 3 kW
- 4 kW
- 5 kW
Power Specifications
Power Sources
- AC, Three-Phase, 50/60 Hz
- AC, Single-Phase, 50/60 Hz
Voltages
Temperature Control
Primary Temperature Control
Certifications
- North American Listed Class 1, Group D components
